Description

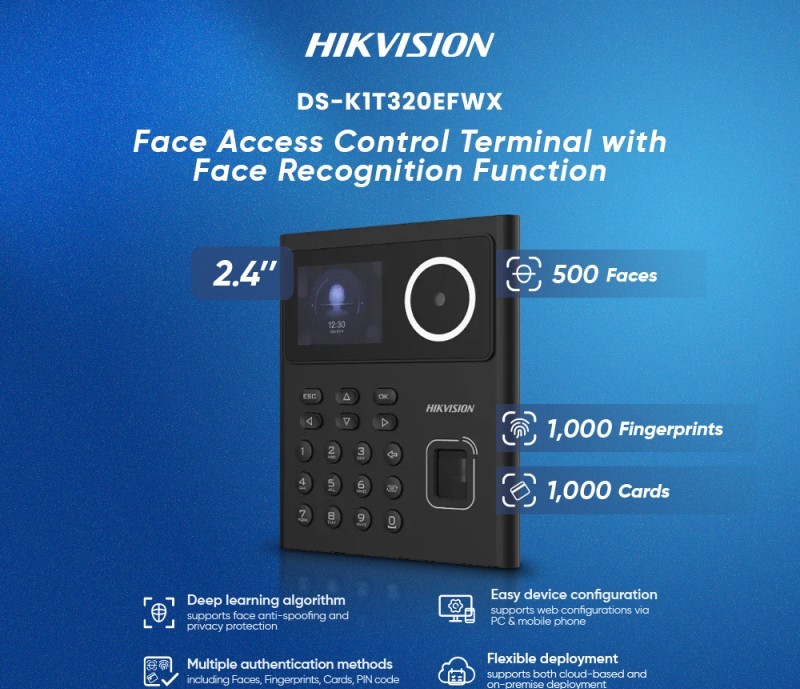

Value Series Face Access Terminal

• 2.4-inch LCD screen, 2 MP lens
• Multiple authentication methods, including face, fingerprint, card, and PIN, etc
• Supports EM card
• Max. 500 faces, 1,000 cards, 1,000 fingerprints and 100,000 events
• Face recognition duration < 0.2 s/User
• Supports ISAPI and ISUP 5.0 protocols
• Configuration via the web client

Specifications

• System
• Operating SystemLinux

• Display
• Screen Size2.4 inch
• TypeDisplay screen
• Resolution320 × 240

• Video
• Lens1
• Video Compression StandardPAL (Default) and NTSC
• Resolution2 MP (video stream: 720P)
• FOVHFOV = 43°; VFOV = 25°

• Audio
• Audio OutputBuilt-in buzzer

• Network
• Wired Network10 M/100 M self-adaptive
• Wi-FiSupport

• Interface
• Network Interface1
• Lock Control1
• Exit Button1
• Door Contact Input1
• TAMPER1
• USB1

• Capacity
• Face Capacity500
• Fingerprint Capacity1,000
• Card Capacity1,000
• Event Capacity100,000

• Authentication
• Face Recognition Distance0.3 m ~ 1.5 m
• Face Recognition Accuracy Rate> 99%
• Face Recognition Duration< 0.2 s
• Card TypeEM card
• Card Reading Distance0 ~5 cm

• Function
• Face Anti-SpoofingSupport

• General
• Built-In Access ControllerYes
• Supplement LightWhite light
• Power SupplyDC 12 V
• Power Consumption≤ 6 W
• Working Temperature-10 ℃ ~ 55 ℃ (14 °F ~ 131 °F)
• Working Humidity0％ ~ 90％
• Language English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean, Japanese
