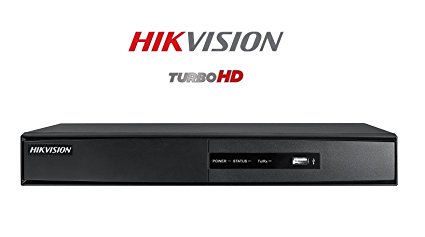

HIKVISION 2MP 4CH DVR

Turbo HD DVR

• H.264 /H.264+& Dual-stream video compression
• Support both HD-TVI /analog and AHD cameras with adaptive access
• Full channel recording at up to 1080P lite resolution
• HDMI and VGA output at up to 1920×1080P resolution
• Long transmission distance over coax cable
• Support  8-ch synchronous playback at 720P resolution

• Description

  Specifications

  Video/Audio Input
  Audio Input:	|	1-ch
  Video Compression:	|	H.264,H.264+
  Analog and HD-TVI video input:	|	8-ch BNC interface (1.0Vp-p, 75 Ω)
  Supported camera types:	|	Support HDTVI input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz,
  		Support AHD input: 720P/25Hz, 720P/30Hz,
  		support CVBS input
  IP Video Input:	|	2-ch Up to 2MP resolution
  Video Input Interface:	|	BNC (1.0 Vp-p, 75Ω)
  Audio Compression:	|	G.711u
  Audio Input Interface:	|	RCA (2.0 Vp-p, 1 kΩ)
  Two-way Audio:	|	1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)
  Video/Audio Output
  HDMI/VGA Output:	|	1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
  Recording resolution:	|	When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF;
  		When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF
  Frame Rate:	|	Main stream:
  		When 1080p Lite mode not enabled:
  		For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
  		When 1080p Lite mode enabled:
  		1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
  Video Bit Rate:	|	32 Kbps ~ 4 Mbps
  Stream Type:	|	Video/Video&Audio
  Audio Output:	|	1-ch RCA(Linear, 1kΩ)
  Audio Bit Rate:	|	64kbps
  Dual Stream:	|	Support
  Playback Resolution:	|	1080p lite/720p/WD1/4CIF/VGA/CIF
  Synchronous Playback:	|	8-ch
  Network management
  Remote connections:	|	128
  Network protocols:	|	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
  Hard Disk Driver
  Interface Type:	|	1 SATA Interface
  Capacity:	|	Up to 6 TB capacity for each disk
  External Interface
  Network Interface:	|	1; 10M / 100M self-adaptive Ethernet interface
  USB Interface:	|	2 USB 2.0 Interfaces
  General
  Power Supply:	|	12V DC
  Consumption:	|	≤ 12W(without hard disks)
  Working Temperature:	|	-10 ºC ~+55 ºC (14 ºF ~ 131 ºF)
  Working Humidity:	|	10% ~ 90%
  Chassis:	|	1U chassis
  Dimensions:	|	260 × 222 × 45mm (10.2 × 8.7 × 1.8 inch)
  Weight:	|	≤ 1 Kg (2.2 lb) (without hard disks)
